Squared

Overview

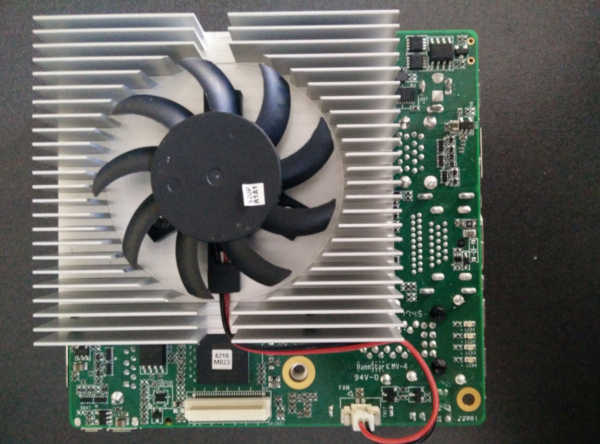

Top

../../../_images/top.jpg

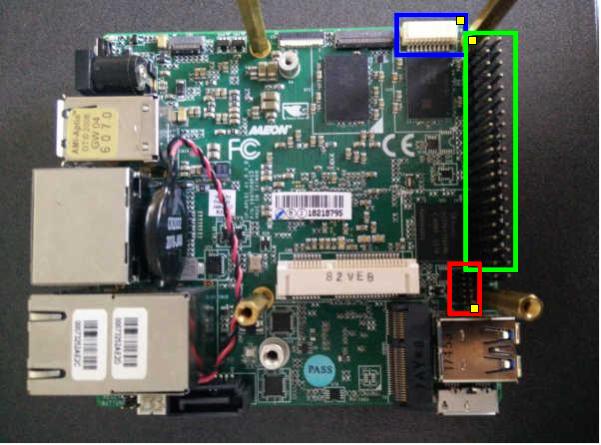

Bottom

../../../_images/bottom.jpg

  • Legend

    • BLUE: UART0 / USB connector

    • GREEN: UART1 / GPIO header

    • RED: SPI header

    • YELLOW: Indicates pin 1

Mainboard components

Platform

CPU

Intel Atom, Celeron, Pentium

PCH

Intel Apollo Lake

EC / Super IO

N/A

Coprocessor

Intel TXE 3.0

Flash chip

Type

Value

Socketed flash

no

Vendor

Winbond

Model

W25Q128FW

Voltage

1.8V

Size

16 MiB

Package

SOIC-8

Write protection

No

Internal flashing

No

In circuit flashing

Yes

Debugging

UART0 (CN16)

This connector is located on the bottom side (see here). ../../../_images/header_cn16_10pin_uart0.svg

UART1 (GPIO header)

The GPIO header is located on the bottom side (see here). ../../../_images/header_40pin_gpio_uart1.svg

Building and flashing coreboot

Using the SPI header

The SPI header is located on the bottom side (see here). ../../../_images/header_cn22_12pin_spi.svg

Preparations

In order to build coreboot, it’s necessary to extract some files from the vendor firmware. Make sure that you have a fully working dump.

[upsquared]$ ls
firmware_vendor.rom

[upsquared]$ mkdir extracted && cd extracted
[extracted]$ ifdtool -x ../firmware_vendor.rom
File ../firmware_vendor.rom is 16777216 bytes
Peculiar firmware descriptor, assuming Ibex Peak compatibility.
  Flash Region 0 (Flash Descriptor): 00000000 - 00000fff
  Flash Region 1 (BIOS): 00001000 - 00efefff
  Flash Region 2 (Intel ME): 07fff000 - 00000fff (unused)
  Flash Region 3 (GbE): 07fff000 - 00000fff (unused)
  Flash Region 4 (Platform Data): 07fff000 - 00000fff (unused)
  Flash Region 5 (Reserved): 00eff000 - 00ffefff
  Flash Region 6 (Reserved): 07fff000 - 00000fff (unused)
  Flash Region 7 (Reserved): 07fff000 - 00000fff (unused)
  Flash Region 8 (EC): 07fff000 - 00000fff (unused)

flashregion_0_flashdescriptor.bin
flashregion_1_bios.bin
flashregion_5_reserved.bin

Clean up

[coreboot]$ make distclean

Configuring

[coreboot]$ touch .config
[coreboot]$ ./util/scripts/config --enable VENDOR_UP
[coreboot]$ ./util/scripts/config --enable BOARD_UP_SQUARED
[coreboot]$ ./util/scripts/config --enable NEED_IFWI
[coreboot]$ ./util/scripts/config --enable HAVE_IFD_BIN
[coreboot]$ ./util/scripts/config --set-str IFWI_FILE_NAME "<flashregion_1_bios.bin>"
[coreboot]$ ./util/scripts/config --set-str IFD_BIN_PATH "<flashregion_0_flashdescriptor.bin>"
[coreboot]$ make olddefconfig

Building

[coreboot]$ make

Now you should have a working and ready to use coreboot build at build/coreboot.rom.

Flashing

[coreboot]$ flashrom -p <your_programmer> -w build/coreboot.rom

Board status

Working

  • bootblock, romstage, ramstage

  • Serial console UART0, UART1

  • SPI flash console

  • iGPU init with libgfxinit

  • LAN1, LAN2

  • USB2, USB3

  • HDMI, DisplayPort

  • eMMC

  • flashing with flashrom externally

Work in progress

  • Documentation

  • ACPI

Not working / Known issues

  • Generally SeaBIOS works, but it can’t find the CBFS region and therefore it can’t load seavgabios. This is because of changes at the Apollolake platform.

Untested

  • GPIO pin header

  • 60 pin EXHAT

  • Camera interface

    • MIPI-CSI2 2-lane (2MP)

    • MIPI-CSI2 4-lane (8MP)

  • SATA3

  • USB3 OTG

  • embedded DisplayPort

  • M.2 slot

  • mini PCIe

  • flashing with flashrom internally using Linux
