ipyparallel magics#

[1]:
import ipyparallel as ipp
rc = ipp.Client()
[2]:
with rc[:].sync_imports():
    import numpy
importing numpy on engine(s)
got unknown result: 05d7cec8-912387fc506b2f40c1471286
got unknown result: fa6fddcf-779a7f98c12df80a46c1e51f
[3]:
%px a = numpy.random.rand(2,2)
[4]:
%px numpy.linalg.eigvals(a)
Out[0:2]: array([0.65462266, 1.13932216])
Out[1:2]: array([ 0.83473139, -0.29322661])
Out[2:2]: array([0.05028953, 1.30003731])
Out[3:2]: array([0.99612347, 0.42574895])
[5]:
%px print('hi')
[stdout:0] hi
[stdout:1] hi
[stdout:2] hi
[stdout:3] hi
[6]:
%px %pylab inline
[stdout:0] Populating the interactive namespace from numpy and matplotlib
[stdout:1] Populating the interactive namespace from numpy and matplotlib
[stdout:2] Populating the interactive namespace from numpy and matplotlib
[stdout:3] Populating the interactive namespace from numpy and matplotlib
[7]:
%px plot(rand(100))

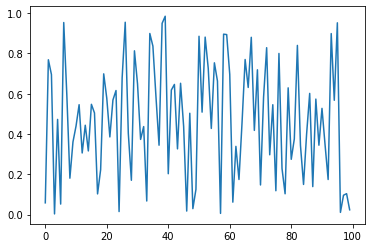

[output:0]
../../../_images/hub_ipyparallel_magics_7_1.png

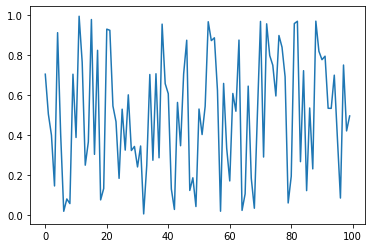

[output:1]
../../../_images/hub_ipyparallel_magics_7_3.png

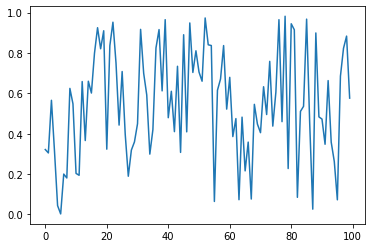

[output:2]
../../../_images/hub_ipyparallel_magics_7_5.png

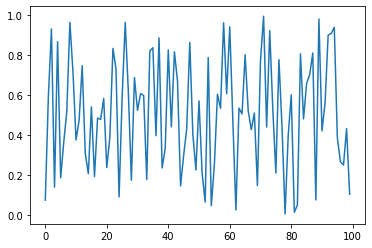

[output:3]
../../../_images/hub_ipyparallel_magics_7_7.png
Out[0:5]: [<matplotlib.lines.Line2D at 0x1102e2b10>]
Out[1:5]: [<matplotlib.lines.Line2D at 0x10ea7f110>]
Out[2:5]: [<matplotlib.lines.Line2D at 0x113d70d50>]
Out[3:5]: [<matplotlib.lines.Line2D at 0x10fee7fd0>]

%%px cell magic#

--targets, --block and --noblock

[8]:
%%px --targets ::2
print('I am even')
[stdout:0] I am even
[stdout:2] I am even
[9]:
%%px --targets 1
print('I am number 1')
I am number 1
[10]:
%%px
print('still all by default')
[stdout:0] still all by default
[stdout:1] still all by default
[stdout:2] still all by default
[stdout:3] still all by default
[11]:
%%px --noblock
import time
time.sleep(1)
time.time()
[11]:
<AsyncResult: execute>
[12]:
%pxresult
Out[0:8]: 1570269717.543805
Out[1:8]: 1570269717.54598
Out[2:8]: 1570269717.5485692
Out[3:7]: 1570269717.548548
[13]:
%%px --block --group-outputs=engine
import numpy as np
A = np.random.random((2,2))
ev = numpy.linalg.eigvals(A)
print(ev)
ev.max()
[stdout:0] [-0.68780518  0.74951568]
[output:0]
Out[0:9]: 0.7495156792444352
[stdout:1] [0.75691299 1.08526474]
[output:1]
Out[1:9]: 1.0852647415435284
[stdout:2] [-0.2153414   1.46736661]
[output:2]
Out[2:9]: 1.467366609797983
[stdout:3] [0.55698336 0.13540831]
[output:3]
Out[3:8]: 0.5569833627025539

%pxresult#

[14]:
dview = rc[:]
[15]:
dview.block = False
%px print('hi')
%pxresult
[stdout:0] hi
[stdout:1] hi
[stdout:2] hi
[stdout:3] hi
[stdout:0] hi
[stdout:1] hi
[stdout:2] hi
[stdout:3] hi

%autopx#

[16]:
dview.block=True
[17]:
%autopx
%autopx enabled
[18]:
max_evals = []
for i in range(100):
     a = numpy.random.rand(10,10)
     a = a+a.transpose()
     evals = numpy.linalg.eigvals(a)
     max_evals.append(evals[0].real)
[19]:
print("Average max eigenvalue is: %f" % (sum(max_evals)/len(max_evals)))
[stdout:0] Average max eigenvalue is: 10.209420
[stdout:1] Average max eigenvalue is: 10.214184
[stdout:2] Average max eigenvalue is: 10.071618
[stdout:3] Average max eigenvalue is: 10.132674

%pxconfig#

[3]:
%pxconfig --block
%px print('hi')
[stdout:0] hi
[stdout:1] hi
[stdout:2] hi
[stdout:3] hi
[4]:
%pxconfig --targets ::2
%px print('hi')
[stdout:0] hi
[stdout:2] hi
[5]:
%pxconfig --noblock
%px print('hi')
[5]:
<AsyncResult: execute>
[6]:
%pxresult
[stdout:0] hi
[stdout:2] hi

Multiple active views#

Magics of ipyparallel are assigned to certain DirectView objects. However, the active view can be changed by calling the activate() method on a view.

[3]:
even = rc[::2]
even.activate()
%px print('hi')
[3]:
<AsyncResult: execute>
[4]:
even.block = True
%px print('hi')
got unknown result: 98a3ad5c-00fa7f40e334c8a4186d5be5
[stdout:0] hi
[stdout:2] hi

If you activate the view, you can also specify a suffix so that it can be assigned to a whole range of magics without replacing the existing ones.

[5]:
rc.activate()
[5]:
<DirectView all>
[6]:
even.activate('_even')
%px print('hi')
[stdout:0] hi
[stdout:1] hi
[stdout:2] hi
[stdout:3] hi
[7]:
%px_even print("We aren’t odd!")
[stdout:0] We aren’t odd!
[stdout:2] We aren’t odd!

This suffix is used at the end of all magics, e.g.%autopx_even, %pxresult_even etc.

For the sake of simplicity, also Client has an activate() method that creates a DirectView with block = True, activates it, and returns the new view.

The initial magics that are registered when a client is created are the result of the call rc.activate() with standard arguments.

Engines as kernel#

Engines are actually the same object as IPython kernels, with the only exception that engines connect to a controller, while regular kernels bind their sockets directly to connections to their front end.

Sometimes you will connect your front end directly to an engine for debugging or analysing the interaction more directly. You can also do this by instructing the engine to bind its kernel to your frontend as well:

[ ]:
%px import ipyparallel as ipp; ipp.bind_kernel()
%px %qtconsole

Note: Be careful with this statement, as it starts as many QtConsoles as there are engines available.

Alternatively, you can also display the connection information and determine how you can establish a connection to the engines, depending on where they live and where you are:

[ ]:
%px %connect_info
