ipylayout

ipylayout is based on GoldenLayout, a multi-screen layout manager for web applications.

Installation

ipylayout can be easily installed with pipenv:

$ pipenv install ipylayout
Installing ipylayout…
…

If not already done, ipywidgets will also be installed.

Example

For the following example you also need the Python packages ipyleaflet and ipympl.

%matplotlib widget
import ipylayout
import ipywidgets
import ipyleaflet
import matplotlib.pyplot as plt
import numpy as np
plt.ioff()

# create a plot

fig = plt.figure()
fig.canvas.header_visible = False
fig.canvas.layout.min_height = '300px'
fig.canvas.layout.width = '100%'
plt.title('Plotting: y=sin(x)')

x = np.linspace(0, 20, 500)
lines = plt.plot(x, np.sin(x))

# create a slider

slider = ipywidgets.FloatSlider()

# create a map

m = ipyleaflet.Map(
    center=(52.204793, 360.121558),
    zoom=4
)

# create a layout

l = ipylayout.Layout(layout=ipywidgets.Layout(width='100%', height='800px'))
l.theme = 'light' # light or dark
l.config = {
    'content': [{
        'type': 'row',
        'content': [{
            'type': 'component',
            'componentName': 'name0',
            'componentState': { 'label': 'A' }
        }, {
            'type': 'column',
            'content': [{
                'type': 'component',
                'componentName': 'name1',
                'componentState': { 'label': 'B' }
            }, {
                'type': 'component',
                'componentName': 'name2',
                'componentState': { 'label': 'C' }
            }]
        }]
    }]
}
l.components = {'name0': slider, 'name1': m, 'name2': fig.canvas}

l

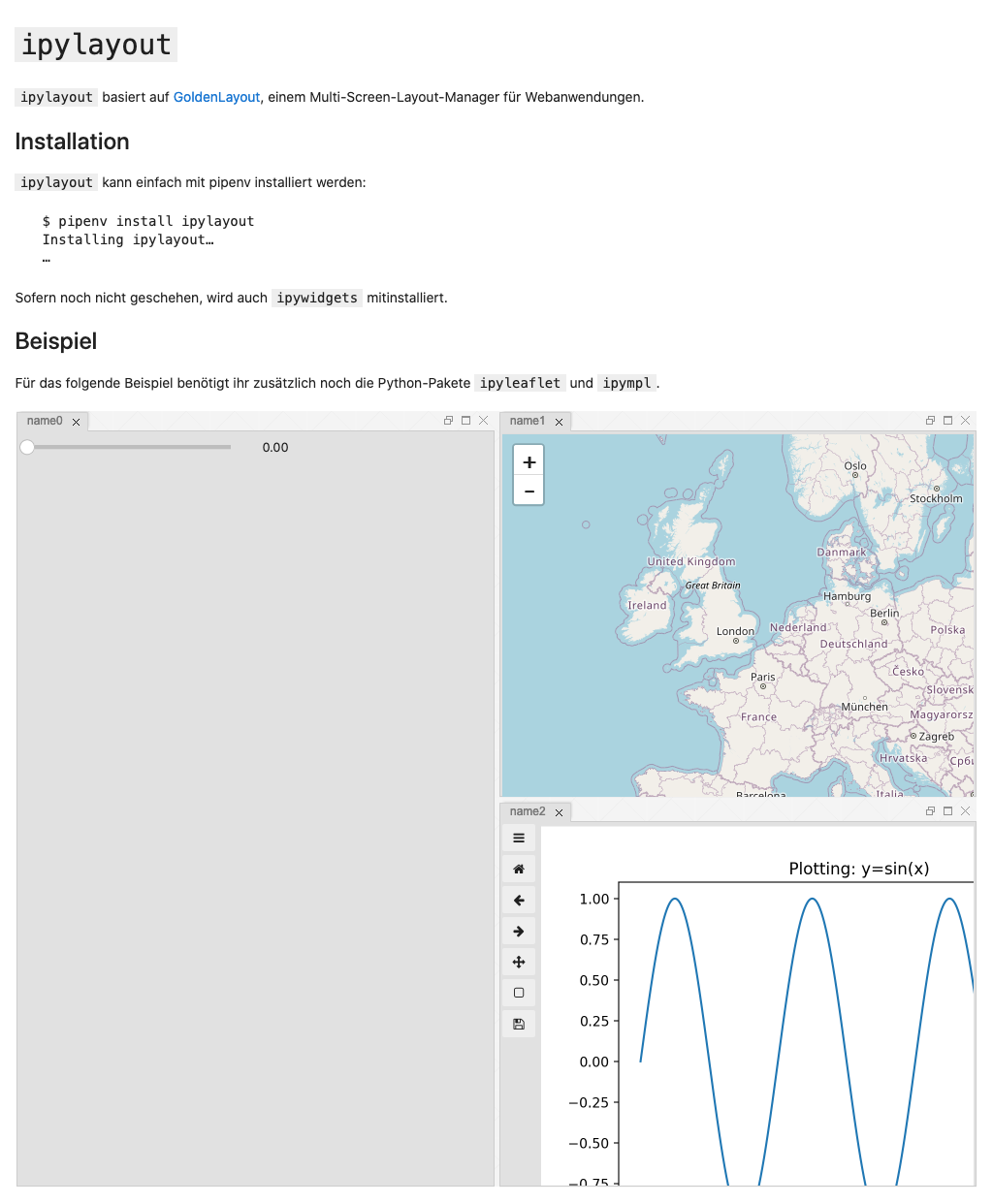

ipylayout can also be used together with Voilà:
