List of extensions#

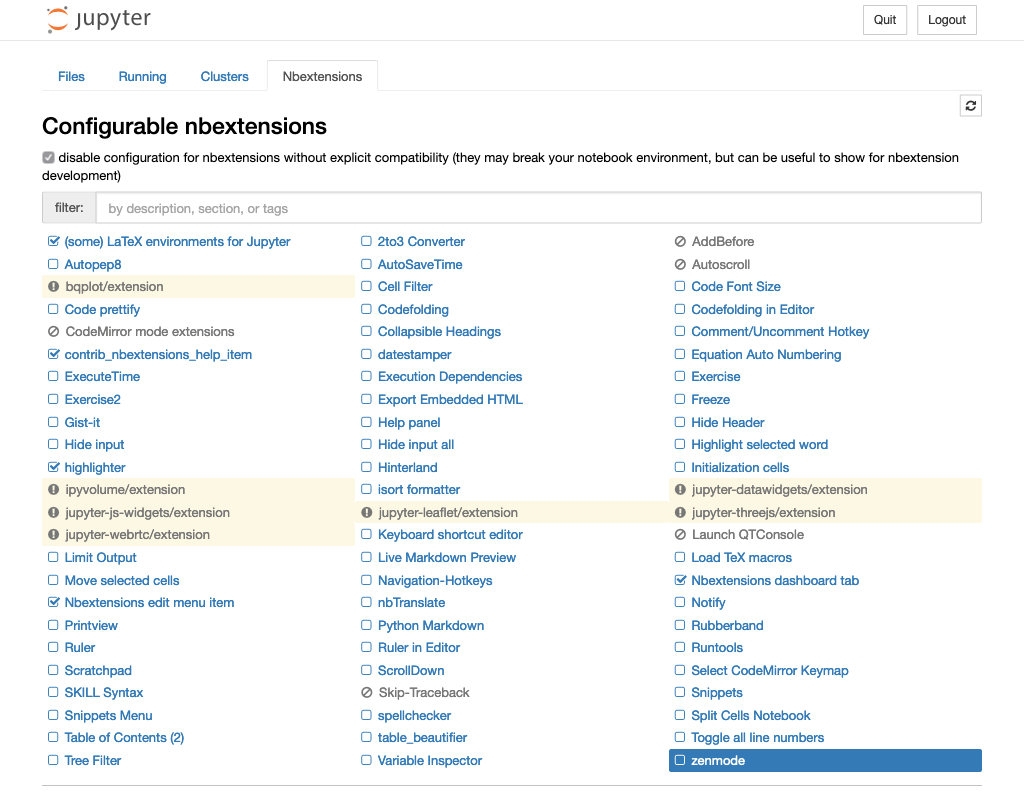

You can activate and configure the notebook extensions by clicking on the
tab. There you have access to the extensions, which can be activated/deactivated via checkboxes. In addition, documentation and configuration options are displayed for each extension.
Hereinafter I will give a brief overview of some of the notebook extensions.
- (some) LaTeX environments for Jupyter notebook
enables the use of Markdown cells for LaTeX commands and environments. In addition, two menus are added:
for quick selection of the suitable LaTeX environment and for further options:The notebook can then be exported as an HTML or LaTeX document.
The configuration of the LaTeX environments is done in
user_envs.json
and for the styles inlatex_env.css
. Additional environments can be added inuser_envs.json
or inthmsInNb4.js
(→ LaTeX-Environments doc).- jupyter-autopep8
formats/beautifies Python code in cells. The extension uses autopep8 and can therefore only be used with a Python kernel.
- A Code Prettifier
formats/beautifies code notebook code cells. The current notebook kernel is used, which is why the Prettifier package used must be available in this kernel. Sample implementations are provided for ipython, R, and Javascript kernels.
- Limit Output
limits the number of characters that a code cell outputs as text or HTML. This also breaks endless loops. You can set the number of characters with the
ConfigManager
:from notebook.services.config import ConfigManager cm = ConfigManager().update('notebook', {'limit_output': 1000})
- Nbextensions edit menu item
adds an edit menu to open the configuration page of
nbextensions
.- Printview
adds an icon to display the print preview of the current notebook in a new browser tab.
- Ruler
adds a ruler after a certain number of characters. The number of characters can be specified with the
ConfigManager
:from notebook.services.config import ConfigManager ip = get_ipython() cm = ConfigManager(parent=ip) cm.update('notebook', {"ruler_column": [80]})
- Scratchpad notebook extension
adds a note cell to the notebook. In this cell you can run code from the current kernel without changing the document.

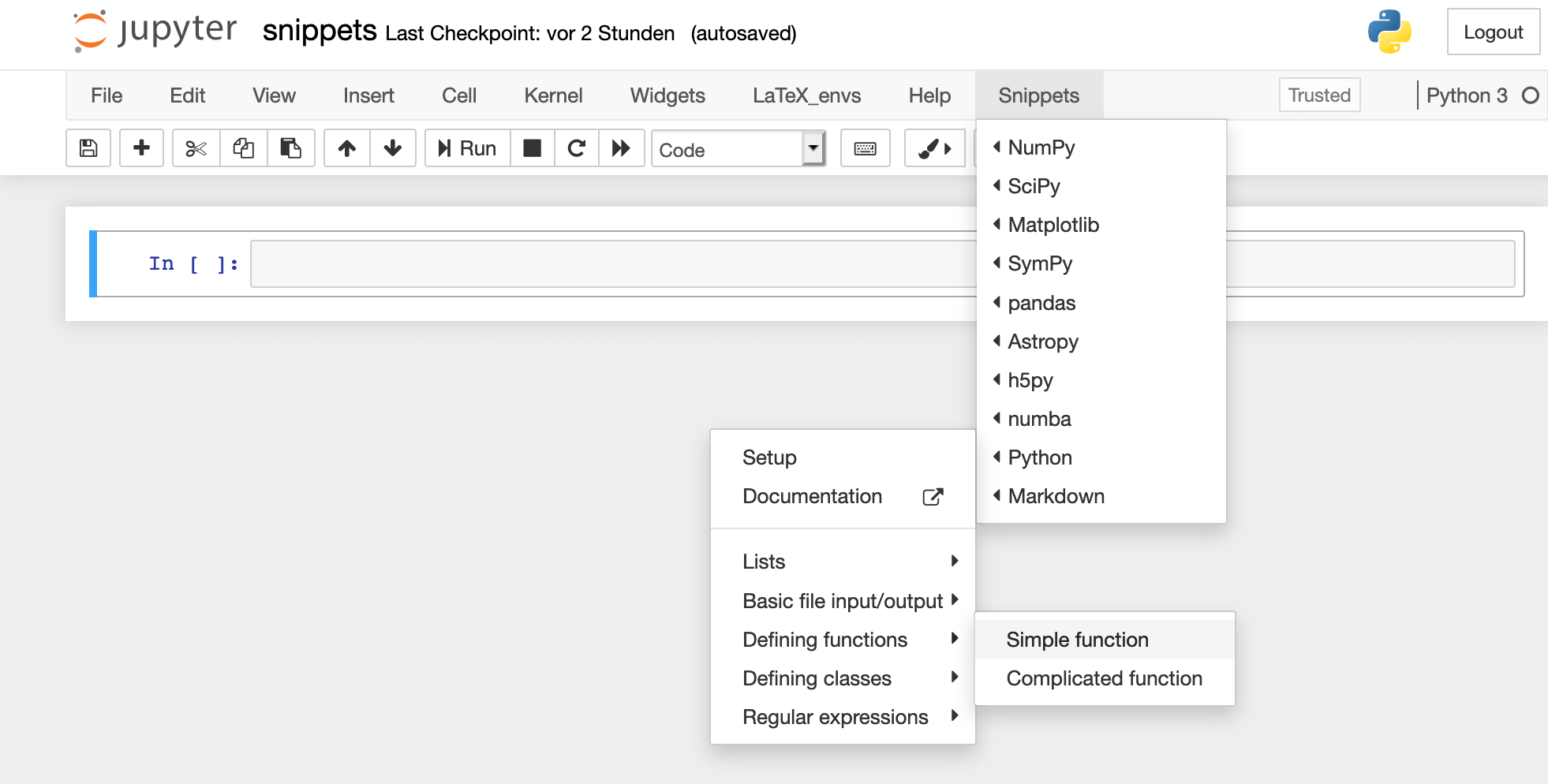

- Snippets
adds a configurable menu item to notebooks to insert snippets, boilerplate and code examples.
You can also define your own menu items, see also Snippets.
- Table of Contents (2)
makes it possible to collect all headings and display them in a floating window, as a sidebar or in a navigation menu.
If headings shouldn’t be displayed in the table of contents, you can do this with:
## My title <a class="tocSkip">
The table of contents can also be exported by specifying a corresponding template, e.g.
$ jupyter nbconvert mynotebook.ipynb --template toc2
General documentation on templates can be found in
Customizing exporters
.- Tree-filter
filters in the Jupyter dashboard by file name.
- A 2to3 converter
converts Python2 to Python3 code in a code cell using the lib2to3 library.

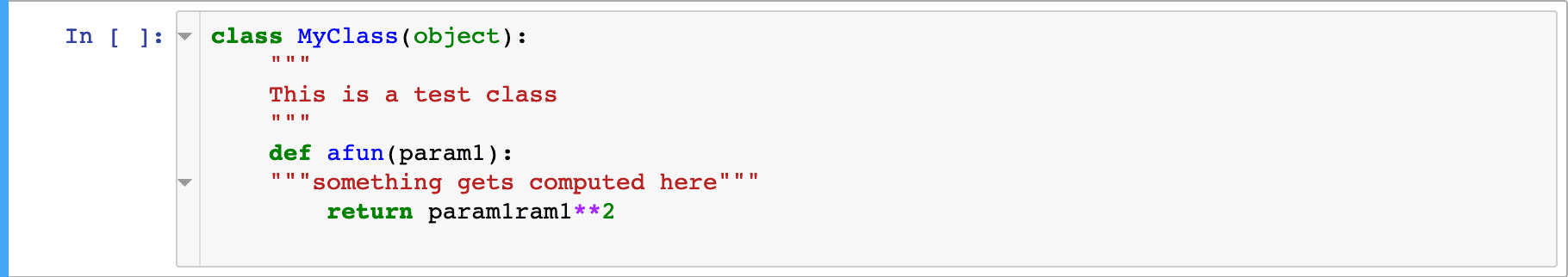

- Codefolding
enables code folding in code cells.
Usually code folding is retained when exporting with nbconvert. This can either be changed in
jupyter_nbconvert_config.py
with:c.CodeFoldingPreprocessor.remove_folded_code=True = True
or on the command line with:
$ jupyter nbconvert --to html --CodeFoldingPreprocessor.remove_folded_code=True mynotebook.ipynb
- Collapsible Headings
enables notebooks to have collapsible sections separated by headings.
- Datestamper
inserts the current time and date in one cell.
- Hinterland
enables autocompletion.
- Variable Inspector
collects all defined variables and displays them in a floating window.
- Purpose
automatically loads a series of latex commands from the
latexdefs.tex
file when a notebook is opened.
