J-LINK¶

SEGGER J-Links are the most widely used line of debug probes available today. They’ve proven their value for more than 10 years with over 400,000 units sold, including OEM versions and on-board solutions. This popularity stems from the unparalleled performance, extensive feature set, large number of supported CPUs, and compatibility with all popular development environments. Official reference can be found here.

J-Link Supported Devices

Also, see Custom debugging configuration with J-Link GDB Server.

Configuration ¶

You can configure debugging tool using debug_tool option in “platformio.ini” (Project Configuration File):

[env:myenv]
platform = ...
board = ...
debug_tool = jlink

If you would like to use this tool for firmware uploading, please change upload protocol:

[env:myenv]
platform = ...
board = ...
debug_tool = jlink

; SWD interface
upload_protocol = jlink

; JTAG interface
upload_protocol = jlink-jtag

More options:

Drivers ¶

Windows:

Start debugging session using PlatformIO IDE. PlatformIO will install J-Link software dependencies
Navigate to home_dir/packages/tool-jlink/USBDriver
Run InstDrivers.exe.

Mac:

Not required.

Linux:

Please install “udev” rules 99-platformio-udev.rules. If you already installed them before, please check that your rules are up-to-date or repeat steps.

Wiring Connections ¶

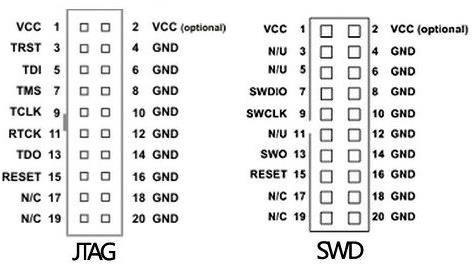

../../../_images/generic_jtag_swd_connector.jpg

JTAG Interface ¶

J-Link JTAG 20-Pin Connector	Board JTAG Pin	Description
1	VCC	Positive Supply Voltage — Power supply for JTAG interface drivers
4	GND	Digital ground
5	TDI	Test Data In pin
7	TMS	Test Mode State pin
9	TCK	JTAG Return Test Clock
13	TDO	Test Data Out pin
15	RESET	Connect this pin to the (active low) reset input of the target CPU (EN for ESP32)

Serial Wire Mode Interface (SWD)¶

J-Link SWD 20-Pin Connector	Board SWD Pin	Description
1	VCC	Positive Supply Voltage — Power supply for JTAG interface drivers
4	GND	Digital ground
7	SWDIO	Data I/O
9	SWCLK	Clock
15	RESET	Connect this pin to the (active low) reset input of the target CPU

Platforms ¶

Name	Description
Aceinna IMU	Open-source, embedded development platform for Aceinna IMU hardware. Run custom algorithms and navigation code on Aceinna IMU/INS hardware.
Atmel SAM	Atmel \| SMART offers Flash- based ARM products based on the ARM Cortex-M0+, Cortex-M3 and Cortex-M4 architectures, ranging from 8KB to 2MB of Flash including a rich peripheral and feature mix.
Espressif 32	Espressif Systems is a privately held fabless semiconductor company. They provide wireless communications and Wi-Fi chips which are widely used in mobile devices and the Internet of Things applications.
Freescale Kinetis	Freescale Kinetis Microcontrollers is family of multiple hardware- and software-compatible ARM Cortex-M0+, Cortex-M4 and Cortex-M7-based MCU series. Kinetis MCUs offer exceptional low-power performance, scalability and feature integration.
Infineon XMC	Infineon has designed the XMC microcontrollers for real-time critical applications with an industry-standard core. The XMC microcontrollers can be integrated with the Arduino platform
Maxim 32	Maxim’s microcontrollers provide low-power, efficient, and secure solutions for challenging embedded applications. Maxim’s processors embed cutting-edge technologies to secure data and intellectual property, proven analog circuitry for real-world applications, and battery-conserving low power operation.
Nordic nRF51	The Nordic nRF51 Series is a family of highly flexible, multi-protocol, system-on-chip (SoC) devices for ultra-low power wireless applications. nRF51 Series devices support a range of protocol stacks including Bluetooth Smart (previously called Bluetooth low energy), ANT and proprietary 2.4GHz protocols such as Gazell.
Nordic nRF52	The nRF52 Series are built for speed to carry out increasingly complex tasks in the shortest possible time and return to sleep, conserving precious battery power. They have a Cortex-M4F processor and are the most capable Bluetooth Smart SoCs on the market.
NXP LPC	The NXP LPC is a family of 32-bit microcontroller integrated circuits by NXP Semiconductors. The LPC chips are grouped into related series that are based around the same 32-bit ARM processor core, such as the Cortex-M4F, Cortex-M3, Cortex-M0+, or Cortex-M0. Internally, each microcontroller consists of the processor core, static RAM memory, flash memory, debugging interface, and various peripherals.
Silicon Labs EFM32	Silicon Labs EFM32 Gecko 32-bit microcontroller (MCU) family includes devices that offer flash memory configurations up to 256 kB, 32 kB of RAM and CPU speeds up to 48 MHz. Based on the powerful ARM Cortex-M core, the Gecko family features innovative low energy techniques, short wake-up time from energy saving modes and a wide selection of peripherals, making it ideal for battery operated applications and other systems requiring high performance and low-energy consumption.
ST STM32	The STM32 family of 32-bit Flash MCUs based on the ARM Cortex-M processor is designed to offer new degrees of freedom to MCU users. It offers a 32-bit product range that combines very high performance, real-time capabilities, digital signal processing, and low-power, low-voltage operation, while maintaining full integration and ease of development.
Teensy	Teensy is a complete USB-based microcontroller development system, in a very small footprint, capable of implementing many types of projects. All programming is done via the USB port. No special programmer is needed, only a standard USB cable and a PC or Macintosh with a USB port.
WIZNet W7500	The IOP (Internet Offload Processor) W7500 is the one-chip solution which integrates an ARM Cortex-M0, 128KB Flash and hardwired TCP/IP core for various embedded application platform especially requiring Internet of things

Frameworks ¶

Name	Description
Arduino	Arduino Wiring-based Framework allows writing cross-platform software to control devices attached to a wide range of Arduino boards to create all kinds of creative coding, interactive objects, spaces or physical experiences.
CMSIS	The ARM Cortex Microcontroller Software Interface Standard (CMSIS) is a vendor-independent hardware abstraction layer for the Cortex-M processor series and specifies debugger interfaces. The CMSIS enables consistent and simple software interfaces to the processor for interface peripherals, real-time operating systems, and middleware. It simplifies software re-use, reducing the learning curve for new microcontroller developers and cutting the time-to-market for devices.
ESP-IDF	Espressif IoT Development Framework. Official development framework for ESP32.
libOpenCM3	The libOpenCM3 framework aims to create a free/libre/open-source firmware library for various ARM Cortex-M0(+)/M3/M4 microcontrollers, including ST STM32, Ti Tiva and Stellaris, NXP LPC 11xx, 13xx, 15xx, 17xx parts, Atmel SAM3, Energy Micro EFM32 and others.
mbed	The mbed framework The mbed SDK has been designed to provide enough hardware abstraction to be intuitive and concise, yet powerful enough to build complex projects. It is built on the low-level ARM CMSIS APIs, allowing you to code down to the metal if needed. In addition to RTOS, USB and Networking libraries, a cookbook of hundreds of reusable peripheral and module libraries have been built on top of the SDK by the mbed Developer Community.
Simba	Simba is an RTOS and build framework. It aims to make embedded programming easy and portable.
SPL	The ST Standard Peripheral Library provides a set of functions for handling the peripherals on the STM32 Cortex-M3 family. The idea is to save the user (the new user, in particular) having to deal directly with the registers.
STM32Cube	STM32Cube embedded software libraries, including: The HAL hardware abstraction layer, enabling portability between different STM32 devices via standardized API calls; The Low-Layer (LL) APIs, a light-weight, optimized, expert oriented set of APIs designed for both performance and runtime efficiency.
