J-LINK¶
SEGGER J-Links are the most widely used line of debug probes available today. They’ve proven their value for more than 10 years with over 400,000 units sold, including OEM versions and on-board solutions. This popularity stems from the unparalleled performance, extensive feature set, large number of supported CPUs, and compatibility with all popular development environments. Official reference can be found here.
Also, see Custom debugging configuration with J-Link GDB Server.
Configuration¶
You can configure debugging tool using debug_tool option in “platformio.ini” (Project Configuration File):
[env:myenv]
platform = ...
board = ...
debug_tool = jlink
If you would like to use this tool for firmware uploading, please change upload protocol:
[env:myenv]
platform = ...
board = ...
debug_tool = jlink
; SWD interface
upload_protocol = jlink
; JTAG interface
upload_protocol = jlink-jtag
More options:
Drivers¶
- Windows:
Start debugging session using PlatformIO IDE. PlatformIO will install J-Link software dependencies
Navigate to core_dir/packages/tool-jlink/USBDriver
Run
InstDrivers.exe.
- Mac:
Not required.
- Linux:
Please install “udev” rules 99-platformio-udev.rules. If you already installed them before, please check that your rules are up-to-date or repeat steps.

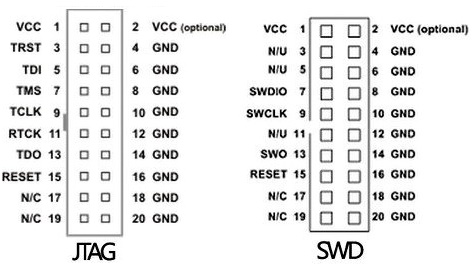

Wiring Connections¶
JTAG Interface¶
J-Link JTAG 20-Pin Connector |
Board JTAG Pin |
Description |
|---|---|---|
1 |
VCC |
Positive Supply Voltage — Power supply for JTAG interface drivers |
4 |
GND |
Digital ground |
5 |
TDI |
Test Data In pin |
7 |
TMS |
Test Mode State pin |
9 |
TCK |
JTAG Return Test Clock |
13 |
TDO |
Test Data Out pin |
15 |
RESET |
Connect this pin to the (active low) reset input of the target CPU (EN for ESP32) |
Serial Wire Mode Interface (SWD)¶
J-Link SWD 20-Pin Connector |
Board SWD Pin |
Description |
|---|---|---|
1 |
VCC |
Positive Supply Voltage — Power supply for JTAG interface drivers |
4 |
GND |
Digital ground |
7 |
SWDIO |
Data I/O |
9 |
SWCLK |
Clock |
15 |
RESET |
Connect this pin to the (active low) reset input of the target CPU |
