J-LINK¶

SEGGER J-Links are the most widely used line of debug probes available today. They’ve proven their value for more than 10 years with over 400,000 units sold, including OEM versions and on-board solutions. This popularity stems from the unparalleled performance, extensive feature set, large number of supported CPUs, and compatibility with all popular development environments. Official reference can be found here.

J-Link Supported Devices

Also, see Custom debugging configuration with J-Link GDB Server.

Configuration ¶

You can configure debugging tool using debug_tool option in “platformio.ini” (Project Configuration File):

[env:myenv]
platform = ...
board = ...
debug_tool = jlink

If you would like to use this tool for firmware uploading, please change upload protocol:

[env:myenv]
platform = ...
board = ...
debug_tool = jlink

; SWD interface
upload_protocol = jlink

; JTAG interface
upload_protocol = jlink-jtag

More options:

Custom Server ¶

[env:debug_jlink]
platform = ststm32
framework = mbed
board = nucleo_f446re

debug_tool = jlink
debug_port = :2331

debug_server =
  /full/path/to/JLinkGDBServerCL
  -singlerun
  -if
  SWD
  -select
  USB
  -port
  2331
  -device
  STM32F446RE

Drivers ¶

Windows:

Start debugging session using PlatformIO IDE. PlatformIO will install J-Link software dependencies
Navigate to core_dir/packages/tool-jlink/USBDriver
Run InstDrivers.exe.

Mac:

Not required.

Linux:

Please install “udev” rules 99-platformio-udev.rules. If you already installed them before, please check that your rules are up-to-date or repeat steps.

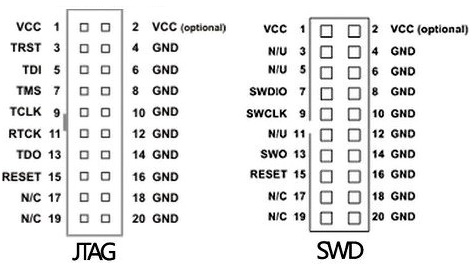

Wiring Connections ¶

../../../_images/generic_jtag_swd_connector.jpg

JTAG Interface ¶

J-Link JTAG 20-Pin Connector	Board JTAG Pin	Description
1	VCC	Positive Supply Voltage — Power supply for JTAG interface drivers
4	GND	Digital ground
5	TDI	Test Data In pin
7	TMS	Test Mode State pin
9	TCK	JTAG Return Test Clock
13	TDO	Test Data Out pin
15	RESET	Connect this pin to the (active low) reset input of the target CPU (EN for ESP32)

Serial Wire Mode Interface (SWD)¶

J-Link SWD 20-Pin Connector	Board SWD Pin	Description
1	VCC	Positive Supply Voltage — Power supply for JTAG interface drivers
4	GND	Digital ground
7	SWDIO	Data I/O
9	SWCLK	Clock
15	RESET	Connect this pin to the (active low) reset input of the target CPU

Platforms ¶

Name	Description
Aceinna IMU	Open-source, embedded development platform for Aceinna IMU hardware. Run custom algorithms and navigation code on Aceinna IMU/INS hardware.
Atmel SAM	Atmel \| SMART offers Flash- based ARM products based on the ARM Cortex-M0+, Cortex-M3 and Cortex-M4 architectures, ranging from 8KB to 2MB of Flash including a rich peripheral and feature mix.
Espressif 32	Espressif Systems is a privately held fabless semiconductor company. They provide wireless communications and Wi-Fi chips which are widely used in mobile devices and the Internet of Things applications.
Freescale Kinetis	Freescale Kinetis Microcontrollers is family of multiple hardware- and software-compatible ARM Cortex-M0+, Cortex-M4 and Cortex-M7-based MCU series. Kinetis MCUs offer exceptional low-power performance, scalability and feature integration.
GigaDevice GD32V	The GigaDevice GD32V device is a 32-bit general-purpose microcontroller based on the RISC-V core with an impressive balance of processing power, reduced power consumption and peripheral set.
Infineon XMC	Infineon has designed the XMC microcontrollers for real-time critical applications with an industry-standard core. The XMC microcontrollers can be integrated with the Arduino platform
Kendryte K210	Kendryte K210 is an AI capable RISCV64 dual core SoC.
Maxim 32	Maxim’s microcontrollers provide low-power, efficient, and secure solutions for challenging embedded applications. Maxim’s processors embed cutting-edge technologies to secure data and intellectual property, proven analog circuitry for real-world applications, and battery-conserving low power operation.
Nordic nRF51	The Nordic nRF51 Series is a family of highly flexible, multi-protocol, system-on-chip (SoC) devices for ultra-low power wireless applications. nRF51 Series devices support a range of protocol stacks including Bluetooth Smart (previously called Bluetooth low energy), ANT and proprietary 2.4GHz protocols such as Gazell.
Nordic nRF52	The nRF52 Series are built for speed to carry out increasingly complex tasks in the shortest possible time and return to sleep, conserving precious battery power. They have a Cortex-M4F processor and are the most capable Bluetooth Smart SoCs on the market.
Nuclei	Find professional RISC-V Processor IP in Nuclei, first professional RISC-V IP company in Mainland China, match all your requirements in AIoT Era.
NXP i.MX RT	The i.MX RT series of crossover processors features the Arm Cortex-M core, real-time functionality and MCU usability at a cost-effective price.
NXP LPC	The NXP LPC is a family of 32-bit microcontroller integrated circuits by NXP Semiconductors. The LPC chips are grouped into related series that are based around the same 32-bit ARM processor core, such as the Cortex-M4F, Cortex-M3, Cortex-M0+, or Cortex-M0. Internally, each microcontroller consists of the processor core, static RAM memory, flash memory, debugging interface, and various peripherals.
Shakti	Shakti is an open-source initiative by the RISE group at IIT-Madras, which is not only building open source, production grade processors, but also associated components like interconnect fabrics, verification tools, storage controllers, peripheral IPs and SOC tools.
SiFive	SiFive brings the power of open source and software automation to the semiconductor industry, making it possible to develop new hardware faster and more affordably than ever before.
Silicon Labs EFM32	Silicon Labs EFM32 Gecko 32-bit microcontroller (MCU) family includes devices that offer flash memory configurations up to 256 kB, 32 kB of RAM and CPU speeds up to 48 MHz. Based on the powerful ARM Cortex-M core, the Gecko family features innovative low energy techniques, short wake-up time from energy saving modes and a wide selection of peripherals, making it ideal for battery operated applications and other systems requiring high performance and low-energy consumption.
ST STM32	The STM32 family of 32-bit Flash MCUs based on the ARM Cortex-M processor is designed to offer new degrees of freedom to MCU users. It offers a 32-bit product range that combines very high performance, real-time capabilities, digital signal processing, and low-power, low-voltage operation, while maintaining full integration and ease of development.
Teensy	Teensy is a complete USB-based microcontroller development system, in a very small footprint, capable of implementing many types of projects. All programming is done via the USB port. No special programmer is needed, only a standard USB cable and a PC or Macintosh with a USB port.
WIZNet W7500	The IOP (Internet Offload Processor) W7500 is the one-chip solution which integrates an ARM Cortex-M0, 128KB Flash and hardwired TCP/IP core for various embedded application platform especially requiring Internet of things

Frameworks ¶

Name	Description
Arduino	Arduino Wiring-based Framework allows writing cross-platform software to control devices attached to a wide range of Arduino boards to create all kinds of creative coding, interactive objects, spaces or physical experiences
CMSIS	The ARM Cortex Microcontroller Software Interface Standard (CMSIS) is a vendor-independent hardware abstraction layer for the Cortex-M processor series and specifies debugger interfaces. The CMSIS enables consistent and simple software interfaces to the processor for interface peripherals, real-time operating systems, and middleware. It simplifies software re-use, reducing the learning curve for new microcontroller developers and cutting the time-to-market for devices
Espressif IoT Development Framework	ESP-IDF is the official development framework for the ESP32 and ESP32-S Series SoCs.
FreeRTOS	FreeRTOS is a real-time operating system kernel for embedded devices that has been ported to 40 microcontroller platforms
Freedom E SDK	Open Source Software for Developing on the SiFive Freedom E Platform
GigaDevice GD32V SDK	GigaDevice GD32VF103 Firmware Library (SDK) is a firmware function package, including programs, data structures and macro definitions, all the performance features of peripherals of GD32VF103 devices are involved in the package
Kendryte FreeRTOS SDK	Kendryte SDK with FreeRTOS support
Kendryte Standalone SDK	Kendryte Standalone SDK without OS support
Mbed	Arm Mbed OS is an open source embedded operating system designed specifically for the ‘things’ in the Internet of Things. It includes all the features you need to develop a connected product based on an Arm Cortex-M microcontroller, including security, connectivity, an RTOS and drivers for sensors and I/O devices
Nuclei SDK	Open Source Software Development Kit for the Nuclei N/NX processors
STM32Cube	STM32Cube embedded software libraries, including: The HAL hardware abstraction layer, enabling portability between different STM32 devices via standardized API calls; The Low-Layer (LL) APIs, a light-weight, optimized, expert oriented set of APIs designed for both performance and runtime efficiency
Shakti SDK	A software development kit for developing applications on Shakti class of processors
Simba	Simba is an RTOS and build framework with aims to make embedded programming easy and portable
Standard Peripheral Library	The ST Standard Peripheral Library provides a set of functions for handling the peripherals on the STM32 family of microcontrollers.
Zephyr RTOS	The Zephyr Project is a scalable real-time operating system (RTOS) supporting multiple hardware architectures, optimized for resource constrained devices, and built with safety and security in mind
libopencm3	The libOpenCM3 framework aims to create a free and open-source firmware library for various ARM Cortex-M0(+)/M3/M4 microcontrollers, including ST STM32, Ti Tiva and Stellaris, NXP LPC, Atmel SAM3, Energy Micro EFM32 and others

Boards ¶

Note

For more detailed board information please scroll tables below by horizontal.

Name	Platform	Debug	MCU	Frequency	Flash	RAM
1Bitsy	ST STM32	External	STM32F415RGT	168MHz	1MB	128KB
32F412GDISCOVERY	ST STM32	On-board	STM32F412ZGT6	100MHz	1MB	256KB
32F723EDISCOVERY	ST STM32	On-board	STM32F723IEK6	216MHz	512KB	192KB
3D Printer Controller	ST STM32	External	STM32F407VET6	168MHz	512KB	192KB
3D Printer control board	ST STM32	External	STM32F446RET6	180MHz	512KB	128KB
3D printer controller	ST STM32	On-board	STM32F765VIT6	216MHz	2MB	512KB
3DP001V1 Evaluation board for 3D printer	ST STM32	On-board	STM32F401VGT6	84MHz	512KB	96KB
96Boards Argonkey (STEVAL-MKI187V1)	ST STM32	External	STM32F412CG	100MHz	1MB	256KB
96Boards B96B-F446VE	ST STM32	On-board	STM32F446VET6	168MHz	512KB	128KB
96Boards Neonkey	ST STM32	External	STM32F427VIT6	168MHz	1.99MB	256KB
96Boards Neonkey	ST STM32	External	STM32F411CE	100MHz	512KB	128KB
96Boards Nitrogen	Nordic nRF52	External	NRF52832	64MHz	512KB	64KB
AI Thinker ESP32-CAM	Espressif 32	External	ESP32	240MHz	4MB	320KB
ALKS ESP32	Espressif 32	External	ESP32	240MHz	4MB	320KB
ARM mbed LPC11U24 (+CAN)	NXP LPC	On-board	LPC11U24	48MHz	32KB	8KB
AZ-Delivery ESP-32 Dev Kit C V4	Espressif 32	External	ESP32	240MHz	16MB	520KB
Aceinna Low Cost RTK	Aceinna IMU	On-board	STM32F469NIH6	180MHz	1MB	384KB
Aceinna OpenIMU 300	Aceinna IMU	External	STM32F405RG	120MHz	1MB	128KB
Aceinna OpenIMU 300ZA	Aceinna IMU	External	STM32F405RG	120MHz	1MB	128KB
Aceinna OpenIMU 330	Aceinna IMU	External	STM32L431CB	80MHz	128KB	64KB
Aceinna OpenIMU 330ZA	Aceinna IMU	External	STM32F469IG	180MHz	1MB	384KB
Aceinna OpenRTK330L	Aceinna IMU	External	STM32F469IG	180MHz	1MB	384KB
Adafruit Bluefruit nRF52832 Feather	Nordic nRF52	External	NRF52832	64MHz	512KB	64KB
Adafruit CLUE nRF52840	Nordic nRF52	External	NRF52840	64MHz	796KB	243KB
Adafruit Circuit Playground Express	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Adafruit Crickit M0	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Adafruit ESP32 Feather	Espressif 32	External	ESP32	240MHz	4MB	320KB
Adafruit Feather Bluefruit Sense	Nordic nRF52	External	NRF52840	64MHz	796KB	243KB
Adafruit Feather M0	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Adafruit Feather M0 Express	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Adafruit Feather M4 Express	Atmel SAM	External	SAMD51J19A	120MHz	512KB	192KB
Adafruit Feather STM32F405	ST STM32	External	STM32F405RGT6	168MHz	1MB	128KB
Adafruit Feather nRF52840 Express	Nordic nRF52	External	NRF52840	64MHz	796KB	243KB
Adafruit Gemma M0	Atmel SAM	External	SAMD21E18A	48MHz	256KB	32KB
Adafruit Grand Central M4	Atmel SAM	External	SAMD51P20A	120MHz	1MB	256KB
Adafruit Hallowing M0	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Adafruit Hallowing M4	Atmel SAM	External	SAMD51J19A	120MHz	496KB	192KB
Adafruit ItsyBitsy M0	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Adafruit ItsyBitsy M4	Atmel SAM	External	SAMD51G19A	120MHz	512KB	192KB
Adafruit MONSTER M4SK	Atmel SAM	External	SAMD51G19A	120MHz	496KB	192KB
Adafruit Metro M0 Expresss	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Adafruit Metro M4	Atmel SAM	External	SAMD51J19A	120MHz	512KB	192KB
Adafruit Metro M4 AirLift Lite	Atmel SAM	External	SAMD51J19A	120MHz	512KB	192KB
Adafruit PyGamer Advance M4	Atmel SAM	External	SAMD51J20A	120MHz	1MB	256KB
Adafruit PyGamer M4 Express	Atmel SAM	External	SAMD51J19A	120MHz	512KB	192KB
Adafruit PyPortal M4	Atmel SAM	External	SAMD51J20A	120MHz	1MB	256KB
Adafruit PyPortal M4 Titano	Atmel SAM	External	SAMD51J20A	120MHz	1MB	256KB
Adafruit Trellis M4	Atmel SAM	External	SAMD51J19A	120MHz	512KB	192KB
Adafruit Trinket M0	Atmel SAM	External	SAMD21E18A	48MHz	256KB	32KB
Adafruit pIRkey	Atmel SAM	External	SAMD21E18A	48MHz	256KB	32KB
Adafruit pyBadge AirLift M4	Atmel SAM	External	SAMD51J20A	120MHz	1008KB	192KB
Adafruit pyBadge M4 Express	Atmel SAM	External	SAMD51J19A	120MHz	512KB	192KB
AfroFlight Rev5 (8MHz)	ST STM32	External	STM32F103CBT6	72MHz	128KB	20KB
Arduino Due (Programming Port)	Atmel SAM	External	AT91SAM3X8E	84MHz	512KB	96KB
Arduino Due (USB Native Port)	Atmel SAM	External	AT91SAM3X8E	84MHz	512KB	96KB
Arduino M0	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Arduino M0 Pro (Native USB Port)	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Arduino M0 Pro (Programming/Debug Port)	Atmel SAM	On-board	SAMD21G18A	48MHz	256KB	32KB
Arduino MKR FOX 1200	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Arduino MKR GSM 1400	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Arduino MKR NB 1500	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Arduino MKR WAN 1300	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Arduino MKR WAN 1310	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Arduino MKR WiFi 1010	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Arduino MKR1000	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Arduino MKRZERO	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Arduino Nano 33 BLE	Nordic nRF52	External	NRF52840	64MHz	960KB	256KB
Arduino Tian	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Arduino Zero (Programming/Debug Port)	Atmel SAM	On-board	SAMD21G18A	48MHz	256KB	32KB
Arduino Zero (USB Native Port)	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Armstrap Eagle 1024	ST STM32	On-board	STM32F417VGT6	168MHz	1MB	192KB
Armstrap Eagle 2048	ST STM32	On-board	STM32F427VIT6	168MHz	1.99MB	256KB
Armstrap Eagle 512	ST STM32	On-board	STM32F407VET6	168MHz	512KB	192KB
Artix-7 35T Arty FPGA Evaluation Kit	Shakti	On-board	E-CLASS	50MHz	0B	128KB
Arty A7-100: Artix-7 FPGA Development Board	Shakti	On-board	C-CLASS	50MHz	0B	128MB
Arty FPGA Dev Kit	SiFive	On-board	FE310	450MHz	16MB	256MB
Atmel ATSAMR21-XPRO	Atmel SAM	On-board	SAMR21G18A	48MHz	256KB	32KB
Atmel ATSAMW25-XPRO	Atmel SAM	On-board	SAMD21G18A	48MHz	256KB	32KB
Atmel SAMC21-XPRO	Atmel SAM	On-board	SAMC21J18A	48MHz	256KB	32KB
Atmel SAMD21-XPRO	Atmel SAM	On-board	SAMD21J18A	48MHz	256KB	32KB
Atmel SAML21-XPRO-B	Atmel SAM	On-board	SAML21J18B	48MHz	256KB	32KB
BBC micro:bit	Nordic nRF51	On-board	NRF51822	16MHz	256KB	16KB
BL652 Development Kit	Nordic nRF52	On-board	NRF52832	64MHz	512KB	64KB
BL654 Development Kit	Nordic nRF52	On-board	NRF52840	64MHz	1MB	256KB
Bambino-210E	NXP LPC	On-board	LPC4330	204MHz	8MB	264KB
Black STM32F407VE	ST STM32	External	STM32F407VET6	168MHz	512KB	128KB
Black STM32F407VG	ST STM32	External	STM32F407VGT6	168MHz	512KB	128KB
Black STM32F407ZE	ST STM32	External	STM32F407ZET6	168MHz	512KB	128KB
Black STM32F407ZG	ST STM32	External	STM32F407ZGT6	168MHz	1MB	128KB
BlackPill F103C8	ST STM32	External	STM32F103C8T6	72MHz	64KB	20KB
BlackPill F103C8 (128k)	ST STM32	External	STM32F103C8T6	72MHz	128KB	20KB
BlackPill F303CC	ST STM32	External	STM32F303CCT6	72MHz	256KB	40KB
BlackPill F401CC	ST STM32	External	STM32F401CCT6	84MHz	256KB	64KB
Blue STM32F407VE Mini	ST STM32	External	STM32F407VET6	168MHz	512KB	128KB
BluePill F103C6	ST STM32	External	STM32F103C6T6	72MHz	32KB	10KB
BluePill F103C8	ST STM32	External	STM32F103C8T6	72MHz	64KB	20KB
BluePill F103C8 (128k)	ST STM32	External	STM32F103C8T6	72MHz	128KB	20KB
Bluey nRF52832 IoT	Nordic nRF52	External	NRF52832	64MHz	512KB	64KB
BluzDK	Nordic nRF51	External	NRF51822	32MHz	256KB	32KB
Briki ABC (MBC-WB) - ESP32	Espressif 32	External	ESP32	240MHz	3.25MB	320KB
Briki ABC (MBC-WB) - Samd21	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Briki MBC-WB - ESP32	Espressif 32	External	ESP32	240MHz	3.25MB	320KB
Briki MBC-WB - Samd21	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
CQ Publishing TG-LPC11U35-501	NXP LPC	External	LPC11U35	48MHz	64KB	10KB
Calliope mini	Nordic nRF51	On-board	NRF51822	16MHz	256KB	16KB
Circuit Playground Bluefruit	Nordic nRF52	External	NRF52840	64MHz	796KB	243KB
CoCo-ri-Co!	NXP LPC	On-board	LPC812	30MHz	16KB	4KB
Core board F401RCT6	ST STM32	External	STM32F401RCT6	84MHz	256KB	64KB
D-duino-32	Espressif 32	External	ESP32	240MHz	4MB	320KB
DOIT ESP32 DEVKIT V1	Espressif 32	External	ESP32	240MHz	4MB	320KB
Delta DFBM-NQ620	Nordic nRF52	On-board	NRF52832	64MHz	512KB	64KB
Demo F030F4	ST STM32	External	STM32F030F4P6	48MHz	16KB	4KB
Digistump DigiX	Atmel SAM	External	AT91SAM3X8E	84MHz	512KB	96KB
DipCortex M3	NXP LPC	External	LPC1347	72MHz	64KB	12KB
Dongsen Tech Pocket 32	Espressif 32	External	ESP32	240MHz	4MB	320KB
EA LPC11U35 QuickStart Board	NXP LPC	External	LPC11U35	48MHz	64KB	10KB
EFM32GG-STK3700 Giant Gecko	Silicon Labs EFM32	On-board	EFM32GG990F1024	48MHz	1MB	128KB
EFM32LG-STK3600 Leopard Gecko	Silicon Labs EFM32	On-board	EFM32LG990F256	48MHz	256KB	32KB
EFM32WG-STK3800 Wonder Gecko	Silicon Labs EFM32	On-board	EFM32WG990F256	48MHz	256KB	32KB
EFM32ZG-STK3200 Zero Gecko	Silicon Labs EFM32	On-board	EFM32ZG222F32	24MHz	32KB	4KB
ESP32 FM DevKit	Espressif 32	External	ESP32	240MHz	4MB	320KB
ESP32 Pico Kit	Espressif 32	External	ESP32	240MHz	4MB	320KB
ESP32vn IoT Uno	Espressif 32	External	ESP32	240MHz	4MB	320KB
ESPectro32	Espressif 32	External	ESP32	240MHz	4MB	320KB
ESPino32	Espressif 32	External	ESP32	240MHz	4MB	320KB
ElectronutLabs Blip	Nordic nRF52	On-board	NRF52840	64MHz	1MB	256KB
ElectronutLabs Papyr	Nordic nRF52	On-board	NRF52840	64MHz	1MB	256KB
Electrosmith Daisy	ST STM32	External	STM32H750IBK6	400MHz	512KB	128KB
Embedded Artists LPC4088 Display Module	NXP LPC	On-board	LPC4088	120MHz	512KB	96KB
Embedded Artists LPC4088 QuickStart Board	NXP LPC	On-board	LPC4088	120MHz	512KB	96KB
Espotel LoRa Module	ST STM32	External	STM32F411RET6	100MHz	512KB	128KB
Espressif ESP-WROVER-KIT	Espressif 32	On-board	ESP32	240MHz	4MB	320KB
Espressif ESP32 Dev Module	Espressif 32	External	ESP32	240MHz	4MB	320KB
Ethernet IoT Starter Kit	Freescale Kinetis	On-board	MK64FN1M0VLL12	120MHz	1MB	256KB
F407VG	ST STM32	External	STM32F407VGT6	168MHz	512KB	128KB
FK407M1	ST STM32	External	STM32F407VET6	168MHz	512KB	128KB
FYSETC S6	ST STM32	External	STM32F446VET6	168MHz	512KB	128KB
FireBeetle-ESP32	Espressif 32	External	ESP32	240MHz	4MB	320KB
Freescale Kinetis FRDM-K20D50M	Freescale Kinetis	On-board	MK20DX128VLH5	48MHz	128KB	16KB
Freescale Kinetis FRDM-K22F	Freescale Kinetis	On-board	MK22FN512VLH12	120MHz	512KB	128KB
Freescale Kinetis FRDM-K64F	Freescale Kinetis	On-board	MK64FN1M0VLL12	120MHz	1MB	256KB
Freescale Kinetis FRDM-K66F	Freescale Kinetis	On-board	MK66FN2M0VMD18	180MHz	2MB	256KB
Freescale Kinetis FRDM-K82F	Freescale Kinetis	On-board	MK82FN256VLL15	150MHz	256KB	256KB
Freescale Kinetis FRDM-KL05Z	Freescale Kinetis	On-board	MKL05Z32VFM4	48MHz	32KB	4KB
Freescale Kinetis FRDM-KL25Z	Freescale Kinetis	On-board	MKL25Z128VLK4	48MHz	128KB	16KB
Freescale Kinetis FRDM-KL27Z	Freescale Kinetis	On-board	MKL27Z64VLH4	48MHz	64KB	16KB
Freescale Kinetis FRDM-KL43Z	Freescale Kinetis	On-board	MKL43Z256VLH4	48MHz	256KB	32KB
Freescale Kinetis FRDM-KL46Z	Freescale Kinetis	On-board	MKL46Z256VLL4	48MHz	256KB	32KB
Freescale Kinetis FRDM-KL82Z	Freescale Kinetis	External	MKL82Z128VLK7	96MHz	128KB	96KB
Freescale Kinetis FRDM-KW24D512	Freescale Kinetis	External	MKW24D512	50MHz	512KB	64KB
Freescale Kinetis FRDM-KW41Z	Freescale Kinetis	On-board	MKW41Z512VHT4	48MHz	512KB	128KB
Frog Board ESP32	Espressif 32	External	ESP32	240MHz	4MB	320KB
GD32VF103V Evaluation Kit	Nuclei	External	GD32VF103VBT6	108MHz	128KB	32KB
GD32VF103V RVStar Kit	Nuclei	On-board	GD32VF103VBT6	108MHz	128KB	32KB
GD32VF103V-EVAL	GigaDevice GD32V	External	GD32VF103VBT6	108MHz	128KB	32KB
Heltec WiFi LoRa 32	Espressif 32	External	ESP32	240MHz	4MB	320KB
Heltec WiFi LoRa 32 (V2)	Espressif 32	External	ESP32	240MHz	8MB	320KB
Heltec Wireless Stick	Espressif 32	External	ESP32	240MHz	8MB	320KB
Hexiwear	Freescale Kinetis	External	MK64FN1M0VDC12	120MHz	1MB	256KB
HiFive1 Rev B	SiFive	On-board	FE310	320MHz	16MB	16KB
Holyiot YJ-16019	Nordic nRF52	External	NRF52832	64MHz	512KB	64KB
Hornbill ESP32 Dev	Espressif 32	External	ESP32	240MHz	4MB	320KB
Hornbill ESP32 Minima	Espressif 32	External	ESP32	240MHz	4MB	320KB
IoTaaP Magnolia	Espressif 32	External	ESP32	240MHz	4MB	320KB
ItsyBitsy nRF52840 Express	Nordic nRF52	External	NRF52840	64MHz	796KB	243KB
L476DMW1K	ST STM32	On-board	STM32L476VGT6	80MHz	1MB	128KB
LPCXpresso11U68	NXP LPC	On-board	LPC11U68	50MHz	256KB	36KB
LPCXpresso824-MAX	NXP LPC	On-board	LPC824	30MHz	32KB	8KB
M200 V2	ST STM32	External	STM32F070CBT6	48MHz	120KB	14.81KB
M300	ST STM32	External	STM32F070CBT6	48MHz	120KB	14.81KB
MAX32620FTHR	Maxim 32	External	MAX32620FTHR	96MHz	2MB	256KB
MH ET LIVE ESP32DevKIT	Espressif 32	External	ESP32	240MHz	4MB	320KB
MH ET LIVE ESP32MiniKit	Espressif 32	External	ESP32	240MHz	4MB	320KB
MKR Sharky	ST STM32	External	STM32WB55CG	64MHz	512KB	192.00KB
MKR Vidor 4000	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
MTS Dragonfly	ST STM32	External	STM32F411RET6	100MHz	512KB	128KB
Makerdiary nRF52832-MDK	Nordic nRF52	On-board	NRF52832	64MHz	512KB	64KB
Makerdiary nRF52840-MDK	Nordic nRF52	On-board	NRF52840	64MHz	1MB	256KB
Malyan M200 V1	ST STM32	External	STM32F103CBT6	72MHz	120KB	20KB
Maple	ST STM32	External	STM32F103RBT6	72MHz	108KB	17KB
Maple (RET6)	ST STM32	External	STM32F103RET6	72MHz	256KB	48KB
Maple Mini Bootloader 2.0	ST STM32	External	STM32F103CBT6	72MHz	120KB	20KB
Maple Mini Original	ST STM32	External	STM32F103CBT6	72MHz	108KB	17KB
Maxim Health Sensor Platform	Maxim 32	External	MAX32620	96MHz	2MB	256KB
Mbed Connect Cloud	ST STM32	On-board	STM32F439ZIY6	168MHz	2MB	256KB
Metro nRF52840 Express	Nordic nRF52	External	NRF52840	64MHz	796KB	243KB
Microduino Core STM32 to Flash	ST STM32	External	STM32F103CBT6	72MHz	105.47KB	16.60KB
Microsoft Azure IoT Development Kit (MXChip AZ3166)	ST STM32	On-board	STM32F412ZGT6	100MHz	1MB	256KB
Minitronics v2.0	Atmel SAM	External	SAMD21J18A	48MHz	256KB	32KB
Moteino M0	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
MultiTech mDot	ST STM32	External	STM32F411RET6	100MHz	512KB	128KB
MultiTech mDot F411	ST STM32	External	STM32F411RET6	100MHz	512KB	128KB
MultiTech xDot	ST STM32	External	STM32L151CCU6	32MHz	256KB	32KB
N2+	ST STM32	External	STM32F405RGT6	168MHz	1MB	192KB
NAMote72	ST STM32	External	STM32L152RC	32MHz	256KB	32KB
NANO 33 IoT	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
NGX Technologies BlueBoard-LPC11U24	NXP LPC	External	LPC11U24	48MHz	32KB	8KB
NXP LPC11C24	NXP LPC	External	LPC11C24	48MHz	32KB	8KB
NXP LPC11U34	NXP LPC	External	LPC11U34	48MHz	40KB	8KB
NXP LPC11U37	NXP LPC	External	LPC11U37	48MHz	128KB	10KB
NXP LPC800-MAX	NXP LPC	On-board	LPC812	30MHz	16KB	4KB
NXP LPCXpresso1549	NXP LPC	External	LPC1549	72MHz	256KB	36KB
NXP LPCXpresso54114	NXP LPC	On-board	LPC54114J256BD64	100MHz	256KB	192KB
NXP LPCXpresso54608	NXP LPC	On-board	LPC54608ET512	180MHz	512KB	200KB
NXP LPCXpresso55S16	NXP LPC	On-board	LPC55S16	150MHz	256KB	96KB
NXP LPCXpresso55S69	NXP LPC	On-board	LPC55S69	150MHz	640KB	320KB
NXP i.MX RT1010 Evaluation Kit	NXP i.MX RT	On-board	MIMXRT1011DAE5A	500MHz	64KB	128KB
NXP i.MX RT1015 Evaluation Kit	NXP i.MX RT	On-board	MIMXRT1015DAF5A	500MHz	96KB	128KB
NXP i.MX RT1020 Evaluation Kit	NXP i.MX RT	On-board	MIMXRT1021DAG5A	500MHz	64MB	256MB
NXP i.MX RT1050 Evaluation Kit	NXP i.MX RT	On-board	MIMXRT1052DVL6B	600MHz	64MB	512KB
NXP i.MX RT1060 Evaluation Kit	NXP i.MX RT	On-board	MIMXRT1062DVL6A	600MHz	64MB	1MB
NXP i.MX RT1064 Evaluation Kit	NXP i.MX RT	On-board	MIMXRT1064DVL6A	600MHz	4MB	1MB
NXP mbed LPC11U24	NXP LPC	On-board	LPC11U24	48MHz	32KB	8KB
NXP mbed LPC1768	NXP LPC	On-board	LPC1768	96MHz	512KB	64KB
Node32s	Espressif 32	External	ESP32	240MHz	4MB	320KB
NodeMCU-32S	Espressif 32	External	ESP32	240MHz	4MB	320KB
Nordic Beacon Kit (PCA20006)	Nordic nRF51	On-board	NRF51822	32MHz	256KB	32KB
Nordic Thingy:52 (nRF52-PCA20020)	Nordic nRF52	External	NRF52832	64MHz	512KB	64KB
Nordic nRF51 Dongle (PCA10031)	Nordic nRF51	On-board	NRF51822	32MHz	256KB	32KB
Nordic nRF51X22 Development Kit(PCA1000X)	Nordic nRF51	On-board	NRF51822	32MHz	256KB	32KB
Nordic nRF52-DK	Nordic nRF52	On-board	NRF52832	64MHz	512KB	64KB
Nordic nRF52840-DK	Nordic nRF52	On-board	NRF52840	64MHz	1MB	256KB
Nordic nRF52840-DK (Adafruit BSP)	Nordic nRF52	On-board	NRF52840	64MHz	796KB	243KB
Nucleo G071RB	ST STM32	External	STM32G071RBT6	64MHz	128KB	36KB
Nucleo G431KB	ST STM32	External	STM32G431KBT6	170MHz	128KB	32KB
Nucleo G431RB	ST STM32	External	STM32G431RBT6	170MHz	128KB	32KB
Nucleo G474RE	ST STM32	External	STM32G474RET6	170MHz	512KB	128KB
OLIMEX ESP32-DevKit-LiPo	Espressif 32	External	ESP32	240MHz	4MB	320KB
OLIMEX ESP32-EVB	Espressif 32	External	ESP32	240MHz	4MB	320KB
OLIMEX ESP32-GATEWAY	Espressif 32	External	ESP32	240MHz	4MB	320KB
OLIMEXINO-STM32	ST STM32	External	STM32F103RBT6	72MHz	128KB	20KB
OSHChip	Nordic nRF51	External	NRF51822	32MHz	256KB	32KB
Olimex STM32-P405	ST STM32	External	STM32F405RGT6	168MHz	1MB	192KB
P-Nucleo WB55RG	ST STM32	On-board	STM32WB55RG	64MHz	512KB	192.00KB
PYBSTICK26 Duino	ST STM32	External	STM32F072RB	48MHz	128KB	16KB
PYBStick 26 Pro	ST STM32	External	STM32F412RE	100MHz	512KB	256KB
PYBStick Lite 26	ST STM32	External	STM32F401CEU6	84MHz	512KB	96KB
PYBStick Standard 26	ST STM32	External	STM32F411CEU6	100MHz	512KB	128KB
Particle Argon	Nordic nRF52	External	NRF52840	64MHz	796KB	243KB
Particle Boron	Nordic nRF52	External	NRF52840	64MHz	796KB	243KB
Particle Xenon	Nordic nRF52	External	NRF52840	64MHz	796KB	243KB
Piconomix PX-HER0	ST STM32	External	STM32L072RB	32MHz	128KB	20KB
PrntrBoard V2	ST STM32	External	STM32F407RE	168MHz	512KB	192KB
Pycom LoPy	Espressif 32	External	ESP32	240MHz	4MB	320KB
Pycom LoPy4	Espressif 32	External	ESP32	240MHz	4MB	1.25MB
RAK811 LoRa Tracker	ST STM32	External	STM32L151RBT6	32MHz	128KB	16KB
RAK811 LoRa Tracker	ST STM32	External	STM32L151RBT6	32MHz	128KB	32KB
RHF76 052	ST STM32	External	STM32L051C8T6	32MHz	64KB	8KB
RedBearLab BLE Nano 1.5	Nordic nRF51	On-board	NRF51822	16MHz	256KB	32KB
RedBearLab BLE Nano 2	Nordic nRF52	On-board	NRF52832	64MHz	512KB	64KB
RedBearLab Blend 2	Nordic nRF52	On-board	NRF52832	64MHz	512KB	64KB
RedBearLab nRF51822	Nordic nRF51	On-board	NRF51822	16MHz	256KB	16KB
RushUp Cloud-JAM	ST STM32	On-board	STM32F401RET6	84MHz	512KB	96KB
RushUp Cloud-JAM L4	ST STM32	On-board	STM32L476RGT6	80MHz	1MB	128KB
SDT52832B	Nordic nRF52	External	NRF52832	64MHz	512KB	64KB
SEGGER IP Switch Board	Freescale Kinetis	External	MK66FN2M0VMD18	180MHz	2MB	256KB
SG-O AirMon	Espressif 32	External	ESP32	240MHz	4MB	320KB
SLSTK3400A USB-enabled Happy Gecko	Silicon Labs EFM32	On-board	EFM32HG322F64	25MHz	64KB	8KB
SLSTK3401A Pearl Gecko PG1	Silicon Labs EFM32	On-board	EFM32PG1B200F256GM48	40MHz	256KB	32KB
SLSTK3701A Giant Gecko S1	Silicon Labs EFM32	On-board	EFM32GG11B820F2048GL192	48MHz	2MB	512KB
SODAQ Autonomo	Atmel SAM	External	SAMD21J18A	48MHz	256KB	32KB
SODAQ ExpLoRer	Atmel SAM	External	SAMD21J18A	48MHz	256KB	32KB
SODAQ ONE	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
SODAQ SARA	Atmel SAM	External	SAMD21J18A	48MHz	256KB	32KB
SODAQ SFF	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
ST 32F3348DISCOVERY	ST STM32	On-board	STM32F334C8T6	72MHz	64KB	12KB
ST 32F401CDISCOVERY	ST STM32	On-board	STM32F401VCT6	84MHz	256KB	64KB
ST 32F411EDISCOVERY	ST STM32	On-board	STM32F411VET6	100MHz	512KB	128KB
ST 32F413HDISCOVERY	ST STM32	On-board	STM32F413ZHT6	100MHz	512KB	128KB
ST 32F429IDISCOVERY	ST STM32	On-board	STM32F429ZIT6	180MHz	2MB	256KB
ST 32F469IDISCOVERY	ST STM32	On-board	STM32F469NIH6	180MHz	1MB	384KB
ST 32F746GDISCOVERY	ST STM32	On-board	STM32F746NGH6	216MHz	1MB	320KB
ST 32F769IDISCOVERY	ST STM32	On-board	STM32F769NIH6	216MHz	1MB	512KB
ST 32L0538DISCOVERY	ST STM32	On-board	STM32L053C8T6	32MHz	64KB	8KB
ST 32L100DISCOVERY	ST STM32	On-board	STM32L100RCT6	32MHz	256KB	16KB
ST 32L476GDISCOVERY	ST STM32	On-board	STM32L476VGT6	80MHz	1MB	128KB
ST 32L496GDISCOVERY	ST STM32	On-board	STM32L496AGI6	80MHz	1MB	320KB
ST B-L475E-IOT01A Discovery kit	ST STM32	On-board	STM32L475VGT6	80MHz	1MB	128KB
ST DISCO-L072CZ-LRWAN1	ST STM32	On-board	STM32L072CZ	32MHz	192KB	20KB
ST Discovery F072RB	ST STM32	On-board	STM32F072RBT6	48MHz	128KB	16KB
ST Nucleo F030R8	ST STM32	On-board	STM32F030R8T6	48MHz	64KB	8KB
ST Nucleo F031K6	ST STM32	On-board	STM32F031K6T6	48MHz	32KB	4KB
ST Nucleo F042K6	ST STM32	On-board	STM32F042K6T6	48MHz	32KB	6KB
ST Nucleo F070RB	ST STM32	On-board	STM32F070RBT6	48MHz	128KB	16KB
ST Nucleo F072RB	ST STM32	On-board	STM32F072RBT6	48MHz	128KB	16KB
ST Nucleo F091RC	ST STM32	On-board	STM32F091RCT6	48MHz	256KB	32KB
ST Nucleo F103RB	ST STM32	On-board	STM32F103RBT6	72MHz	128KB	20KB
ST Nucleo F207ZG	ST STM32	On-board	STM32F207ZGT6	120MHz	1MB	128KB
ST Nucleo F302R8	ST STM32	On-board	STM32F302R8T6	72MHz	64KB	16KB
ST Nucleo F303K8	ST STM32	On-board	STM32F303K8T6	72MHz	64KB	12KB
ST Nucleo F303RE	ST STM32	On-board	STM32F303RET6	72MHz	512KB	64KB
ST Nucleo F303ZE	ST STM32	On-board	STM32F303ZET6	72MHz	512KB	64KB
ST Nucleo F334R8	ST STM32	On-board	STM32F334R8T6	72MHz	64KB	16KB
ST Nucleo F401RE	ST STM32	On-board	STM32F401RET6	84MHz	512KB	96KB
ST Nucleo F410RB	ST STM32	On-board	STM32F410RBT6	100MHz	128KB	32KB
ST Nucleo F411RE	ST STM32	On-board	STM32F411RET6	100MHz	512KB	128KB
ST Nucleo F412ZG	ST STM32	On-board	STM32F412ZGT6	100MHz	1MB	256KB
ST Nucleo F413ZH	ST STM32	On-board	STM32F413ZHT6	100MHz	512KB	128KB
ST Nucleo F429ZI	ST STM32	On-board	STM32F429ZIT6	180MHz	2MB	256KB
ST Nucleo F439ZI	ST STM32	On-board	STM32F439ZIT6	180MHz	2MB	256KB
ST Nucleo F446RE	ST STM32	On-board	STM32F446RET6	180MHz	512KB	128KB
ST Nucleo F446ZE	ST STM32	On-board	STM32F446ZET6	180MHz	512KB	128KB
ST Nucleo F722ZE	ST STM32	On-board	STM32F722ZET6	216MHz	512KB	256KB
ST Nucleo F746ZG	ST STM32	On-board	STM32F746ZGT6	216MHz	1MB	320KB
ST Nucleo F756ZG	ST STM32	On-board	STM32F756ZG	216MHz	1MB	320KB
ST Nucleo F767ZI	ST STM32	On-board	STM32F767ZIT6	216MHz	2MB	512KB
ST Nucleo H743ZI	ST STM32	On-board	STM32H743ZIT6	400MHz	2MB	512KB
ST Nucleo L011K4	ST STM32	On-board	STM32L011K4T6	32MHz	16KB	2KB
ST Nucleo L031K6	ST STM32	On-board	STM32L031K6T6	32MHz	32KB	8KB
ST Nucleo L053R8	ST STM32	On-board	STM32L053R8T6	32MHz	64KB	8KB
ST Nucleo L073RZ	ST STM32	On-board	STM32L073RZ	32MHz	192KB	20KB
ST Nucleo L152RE	ST STM32	On-board	STM32L152RET6	32MHz	512KB	80KB
ST Nucleo L412KB	ST STM32	On-board	STM32L412KBU6	80MHz	128KB	40KB
ST Nucleo L432KC	ST STM32	On-board	STM32L432KCU6	80MHz	256KB	64KB
ST Nucleo L433RC-P	ST STM32	On-board	STM32L433RC	80MHz	256KB	64KB
ST Nucleo L452RE	ST STM32	On-board	STM32L452RET6	80MHz	256KB	64KB
ST Nucleo L476RG	ST STM32	On-board	STM32L476RGT6	80MHz	1MB	128KB
ST Nucleo L486RG	ST STM32	On-board	STM32L486RGT6	80MHz	1MB	128KB
ST Nucleo L496ZG	ST STM32	On-board	STM32L496ZGT6	80MHz	1MB	128KB
ST Nucleo L496ZG-P	ST STM32	On-board	STM32L496ZGT6P	80MHz	1MB	320KB
ST Nucleo L4R5ZI	ST STM32	On-board	STM32L4R5ZIT6	120MHz	2MB	640KB
ST STM32F0308DISCOVERY	ST STM32	On-board	STM32F030R8T6	48MHz	64KB	8KB
ST STM32F0DISCOVERY	ST STM32	On-board	STM32F051R8T6	48MHz	64KB	8KB
ST STM32F3DISCOVERY	ST STM32	On-board	STM32F303VCT6	72MHz	256KB	48KB
ST STM32F4DISCOVERY	ST STM32	On-board	STM32F407VGT6	168MHz	1MB	128KB
ST STM32G0316-DISCO	ST STM32	External	STM32G031J6	64MHz	128KB	8KB
ST STM32L073Z-EVAL	ST STM32	On-board	STM32L073VZT6	32MHz	192KB	20KB
ST STM32LDISCOVERY	ST STM32	On-board	STM32L152RBT6	32MHz	128KB	16KB
ST STM32VLDISCOVERY	ST STM32	On-board	STM32F100RBT6	24MHz	128KB	8KB
ST Sensor Node	ST STM32	On-board	STM32L476JG	80MHz	1MB	128KB
STEVAL-FCU001V1 Flight controller unit evaluation board	ST STM32	External	STM32F401CCU6	84MHz	256KB	64KB
STM32-E407	ST STM32	External	STM32F407ZGT6	168MHz	1MB	128KB
STM32-H407	ST STM32	External	STM32F407ZGT6	168MHz	1MB	128KB
STM3210C-EVAL	ST STM32	External	STM32F107VCT6	72MHz	256KB	64KB
STM32373C-EVAL	ST STM32	External	STM32F373VCT6	72MHz	256KB	32KB
STM32F072-EVAL	ST STM32	External	STM32F072VBT6	48MHz	128KB	16KB
STM32F103C4 (6k RAM. 16k Flash)	ST STM32	External	STM32F103C4	72MHz	16KB	6KB
STM32F103C6 (10k RAM. 32k Flash)	ST STM32	External	STM32F103C6	72MHz	32KB	10KB
STM32F103C8 (20k RAM. 64k Flash)	ST STM32	External	STM32F103C8T6	72MHz	64KB	20KB
STM32F103CB (20k RAM. 128k Flash)	ST STM32	External	STM32F103CBT6	72MHz	128KB	20KB
STM32F103R4 (6k RAM. 16k Flash)	ST STM32	External	STM32F103R4	72MHz	16KB	6KB
STM32F103R6 (10k RAM. 32k Flash)	ST STM32	External	STM32F103R6	72MHz	32KB	10KB
STM32F103R8 (20k RAM. 64 Flash)	ST STM32	External	STM32F103R8T6	72MHz	64KB	20KB
STM32F103RB (20k RAM. 128k Flash)	ST STM32	External	STM32F103RBT6	72MHz	128KB	20KB
STM32F103RC (48k RAM. 256k Flash)	ST STM32	External	STM32F103RCT6	72MHz	256KB	48KB
STM32F103RD (64k RAM. 384k Flash)	ST STM32	External	STM32F103RD	72MHz	384KB	64KB
STM32F103RE (64k RAM. 512k Flash)	ST STM32	External	STM32F103RET6	72MHz	512KB	64KB
STM32F103RF (96k RAM. 768k Flash)	ST STM32	External	STM32F103RF	72MHz	768KB	96KB
STM32F103RG (96k RAM. 1024k Flash)	ST STM32	External	STM32F103RG	72MHz	1MB	96KB
STM32F103T4 (6k RAM. 16k Flash)	ST STM32	External	STM32F103T4	72MHz	16KB	6KB
STM32F103T6 (10k RAM. 32k Flash)	ST STM32	External	STM32F103T6	72MHz	32KB	10KB
STM32F103T8 (20k RAM. 64k Flash)	ST STM32	External	STM32F103T8T6	72MHz	64KB	20KB
STM32F103TB (20k RAM. 128k Flash)	ST STM32	External	STM32F103TBT6	72MHz	128KB	20KB
STM32F103V8 (20k RAM. 64k Flash)	ST STM32	External	STM32F103V8	72MHz	64KB	20KB
STM32F103VB (20k RAM. 128k Flash)	ST STM32	External	STM32F103VBT6	72MHz	128KB	20KB
STM32F103VC (48k RAM. 256k Flash)	ST STM32	External	STM32F103VCT6	72MHz	256KB	48KB
STM32F103VD (64k RAM. 384k Flash)	ST STM32	External	STM32F103VDT6	72MHz	384KB	64KB
STM32F103VE (64k RAM. 512k Flash)	ST STM32	External	STM32F103VET6	72MHz	512KB	64KB
STM32F103VF (96k RAM. 768k Flash)	ST STM32	External	STM32F103VF	72MHz	768KB	96KB
STM32F103VG (96k RAM. 1024k Flash)	ST STM32	External	STM32F103VG	72MHz	1MB	96KB
STM32F103ZC (48k RAM. 256k Flash)	ST STM32	External	STM32F103ZCT6	72MHz	256KB	48KB
STM32F103ZD (64k RAM. 384k Flash)	ST STM32	External	STM32F103ZDT6	72MHz	384KB	64KB
STM32F103ZE (64k RAM. 512k Flash)	ST STM32	External	STM32F103ZET6	72MHz	512KB	64KB
STM32F103ZF (96k RAM. 768k Flash)	ST STM32	External	STM32F103ZF	72MHz	768KB	96KB
STM32F103ZG (96k RAM. 1024k Flash)	ST STM32	External	STM32F103ZG	72MHz	1MB	96KB
STM32F303CB (32k RAM. 128k Flash)	ST STM32	External	STM32F303CBT6	72MHz	128KB	32KB
STM32F401CB (64k RAM. 128k Flash)	ST STM32	External	STM32F401CB	84MHz	128KB	64KB
STM32F401CC (64k RAM. 256k Flash)	ST STM32	External	STM32F401CC	84MHz	256KB	64KB
STM32F401CD (96k RAM. 384k Flash)	ST STM32	External	STM32F401CD	84MHz	384KB	96KB
STM32F401CE (96k RAM. 512k Flash)	ST STM32	External	STM32F401CE	84MHz	512KB	96KB
STM32F401RB (64k RAM. 128k Flash)	ST STM32	External	STM32F401RB	84MHz	128KB	64KB
STM32F401RC (64k RAM. 256k Flash)	ST STM32	External	STM32F401RC	84MHz	256KB	64KB
STM32F401RD (96k RAM. 384k Flash)	ST STM32	External	STM32F401RD	84MHz	384KB	96KB
STM32F401RE (96k RAM. 512k Flash)	ST STM32	External	STM32F401RE	84MHz	512KB	96KB
STM32F405RG (128k RAM. 1024k Flash)	ST STM32	External	STM32F405RG	168MHz	1MB	128KB
STM32F407VE (192k RAM. 512k Flash)	ST STM32	External	STM32F407VET6	168MHz	502.23KB	128KB
STM32F407VG (192k RAM. 1024k Flash)	ST STM32	External	STM32F407VGT6	168MHz	1MB	192KB
STM32F410C8 (32k RAM. 64k Flash)	ST STM32	External	STM32F410C8	100MHz	64KB	32KB
STM32F410CB (32k RAM. 128k Flash)	ST STM32	External	STM32F410CB	100MHz	128KB	32KB
STM32F410R8 (32k RAM. 64k Flash)	ST STM32	External	STM32F410R8	100MHz	64KB	32KB
STM32F410RB (32k RAM. 128k Flash)	ST STM32	External	STM32F410RB	100MHz	128KB	32KB
STM32F411CC (128k RAM. 256k Flash)	ST STM32	External	STM32F411CC	100MHz	256KB	128KB
STM32F411CE (128k RAM. 512k Flash)	ST STM32	External	STM32F411CE	100MHz	512KB	128KB
STM32F411RC (128k RAM. 256k Flash)	ST STM32	External	STM32F411RC	100MHz	256KB	128KB
STM32F411RE (128k RAM. 256k Flash)	ST STM32	External	STM32F411RE	100MHz	256KB	128KB
STM32F412CE (256k RAM. 512k Flash)	ST STM32	External	STM32F412CE	100MHz	512KB	256KB
STM32F412CG (256k RAM. 1024k Flash)	ST STM32	External	STM32F412CG	100MHz	1MB	256KB
STM32F412RE (256k RAM. 512k Flash)	ST STM32	External	STM32F412RE	100MHz	512KB	256KB
STM32F412RG (256k RAM. 1024k Flash)	ST STM32	External	STM32F412RG	100MHz	1MB	256KB
STM32F413CG (320k RAM. 1024k Flash)	ST STM32	External	STM32F413CG	100MHz	1MB	320KB
STM32F413CH (320k RAM. 1536k Flash)	ST STM32	External	STM32F413CH	100MHz	1.50MB	320KB
STM32F413RG (320k RAM. 1024k Flash)	ST STM32	External	STM32F413RG	100MHz	1MB	320KB
STM32F413RH (320k RAM. 1536k Flash)	ST STM32	External	STM32F413RH	100MHz	1.50MB	320KB
STM32F415RG (128k RAM. 1024k Flash)	ST STM32	External	STM32F415RG	168MHz	1MB	128KB
STM32F417VE (128k RAM. 512k Flash)	ST STM32	External	STM32F417VE	168MHz	512KB	128KB
STM32F417VG (128k RAM. 1024k Flash)	ST STM32	External	STM32F417VG	168MHz	1MB	128KB
STM32F423CH (320k RAM. 1536k Flash)	ST STM32	External	STM32F423CH	100MHz	1.50MB	320KB
STM32F423RH (320k RAM. 1536k Flash)	ST STM32	External	STM32F423RH	100MHz	1.50MB	320KB
STM32F446RC (128k RAM. 256k Flash)	ST STM32	External	STM32F446RC	180MHz	256KB	128KB
STM32F446RE (128k RAM. 512k Flash)	ST STM32	External	STM32F446RE	180MHz	512KB	128KB
STM32F4Stamp F405	ST STM32	External	STM32F405RGT6	168MHz	1MB	192KB
STM32F7508-DK	ST STM32	On-board	STM32F750N8H6	216MHz	64KB	340KB
STM32H747I-DISCO	ST STM32	On-board	STM32H747XIH6	400MHz	2MB	512KB
SainSmart Due (Programming Port)	Atmel SAM	External	AT91SAM3X8E	84MHz	512KB	96KB
SainSmart Due (USB Native Port)	Atmel SAM	External	AT91SAM3X8E	84MHz	512KB	96KB
Seeed Arch BLE	Nordic nRF51	On-board	NRF51822	16MHz	128KB	16KB
Seeed Arch Link	Nordic nRF51	On-board	NRF51822	16MHz	256KB	16KB
Seeed Arch Max	ST STM32	On-board	STM32F407VET6	168MHz	512KB	192KB
Seeed Tiny BLE	Nordic nRF51	On-board	NRF51822	16MHz	256KB	16KB
Seeed Wio 3G	ST STM32	On-board	STM32F439VI	180MHz	2MB	256KB
Seeeduino Femto M0	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Seeeduino LoRaWAN	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Seeeduino Wio Lite MG126	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Seeeduino Wio Terminal	Atmel SAM	External	SAMD51P19A	120MHz	496KB	192KB
Seeeduino XIAO	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
Seeeduino Zero	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
SensorTile.box	ST STM32	External	STM32L4R9ZI	120MHz	2MB	640KB
Silicognition wESP32	Espressif 32	External	ESP32	240MHz	4MB	320KB
Sino:Bit	Nordic nRF51	External	NRF51822	32MHz	256KB	32KB
Sipeed Longan Nano	GigaDevice GD32V	External	GD32VF103CBT6	108MHz	128KB	32KB
Sipeed Longan Nano Lite	GigaDevice GD32V	External	GD32VF103C8T6	108MHz	64KB	20KB
Sipeed MAIX BiT	Kendryte K210	External	K210	400MHz	16MB	6MB
Sipeed MAIX BiT with Mic	Kendryte K210	External	K210	400MHz	16MB	6MB
Sipeed MAIX GO	Kendryte K210	External	K210	400MHz	16MB	6MB
Sipeed MAIX ONE DOCK	Kendryte K210	External	K210	400MHz	16MB	6MB
Sipeed MAIXDUINO	Kendryte K210	External	K210	400MHz	16MB	6MB
Sipeed MF1 MF1	Kendryte K210	External	K210	400MHz	16MB	6MB
Solder Splash Labs DipCortex M0	NXP LPC	External	LPC11U24	50MHz	32KB	8KB
SparkFun 9DoF Razor IMU M0	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
SparkFun ESP32 Thing	Espressif 32	External	ESP32	240MHz	4MB	320KB
SparkFun LoRa Gateway 1-Channel	Espressif 32	External	ESP32	240MHz	4MB	320KB
SparkFun Qwiic Micro	Atmel SAM	External	SAMD21E18A	48MHz	256KB	32KB
SparkFun RED-V RedBoard	SiFive	On-board	FE310	320MHz	16MB	16KB
SparkFun RED-V Thing Plus	SiFive	On-board	FE310	320MHz	16MB	16KB
SparkFun RedBoard Turbo	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
SparkFun SAMD21 Dev Breakout	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
SparkFun SAMD21 Mini Breakout	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
SparkFun SAMD21 Pro RF	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
SparkFun SAMD51 Thing Plus	Atmel SAM	External	SAMD51J20A	120MHz	496KB	192KB
Sparky V1 F303	ST STM32	External	STM32F303CCT6	72MHz	256KB	40KB
Switch Science mbed LPC1114FN28	NXP LPC	On-board	LPC1114FN28	48MHz	32KB	4KB
Switch Science mbed LPC824	NXP LPC	On-board	LPC824	30MHz	32KB	8KB
TTGO LoRa32-OLED V1	Espressif 32	External	ESP32	240MHz	4MB	320KB
TTGO LoRa32-OLED V2	Espressif 32	External	ESP32	240MHz	4MB	320KB
TTGO T-Beam	Espressif 32	External	ESP32	240MHz	4MB	1.25MB
TTGO T1	Espressif 32	External	ESP32	240MHz	4MB	320KB
Taida Century nRF52 mini board	Nordic nRF52	External	NRF52832	64MHz	512KB	64KB
Teensy 3.1 / 3.2	Teensy	External	MK20DX256	72MHz	256KB	64KB
Teensy 3.5	Teensy	External	MK64FX512	120MHz	512KB	255.99KB
Teensy 3.6	Teensy	External	MK66FX1M0	180MHz	1MB	256KB
Teensy 4.0	Teensy	External	IMXRT1062	600MHz	1.94MB	512KB
Teensy 4.1	Teensy	External	IMXRT1062	600MHz	7.75MB	512KB
Teensy LC	Teensy	External	MKL26Z64	48MHz	62KB	8KB
ThunderPack v1.0	ST STM32	External	STM32L072KZ	32MHz	192KB	20KB
ThunderPack v1.1+	ST STM32	External	STM32F411CEU6	100MHz	512KB	128KB
Thunderboard Sense 2 Sensor-to-Cloud Advanced IoT	Silicon Labs EFM32	On-board	EFR32MG12P432F1024	40MHz	1MB	256KB
Tiny STM103T	ST STM32	External	STM32F103TBU6	72MHz	128KB	20KB
Tuino 096	Atmel SAM	External	SAMD21G18A	48MHz	256KB	32KB
VAkE v1.0	ST STM32	External	STM32F446RET6	180MHz	512KB	128KB
VCCGND F103ZET6 Mini	ST STM32	External	STM32F103ZET6	72MHz	512KB	64KB
VNG VBLUno52	Nordic nRF52	On-board	NRF52832	64MHz	512KB	64KB
VintLabs ESP32 Devkit	Espressif 32	External	ESP32	240MHz	4MB	320KB
WEMOS LOLIN D32	Espressif 32	External	ESP32	240MHz	4MB	320KB
WEMOS LOLIN D32 PRO	Espressif 32	External	ESP32	240MHz	4MB	320KB
WEMOS LOLIN32	Espressif 32	External	ESP32	240MHz	4MB	320KB
WIZwiki-W7500	WIZNet W7500	On-board	WIZNET7500	48MHz	128KB	48KB
WIZwiki-W7500ECO	WIZNet W7500	On-board	WIZNET7500ECO	48MHz	128KB	48KB
WIZwiki-W7500P	WIZNet W7500	On-board	WIZNET7500P	48MHz	128KB	48KB
Waveshare BLE400	Nordic nRF51	External	NRF51822	32MHz	256KB	32KB
WeAct BlackPill V2.0 (BlackPill F411CE)	ST STM32	External	STM32F411CEU6	100MHz	512KB	128KB
WeMos D1 MINI ESP32	Espressif 32	External	ESP32	240MHz	4MB	320KB
WeMos WiFi and Bluetooth Battery	Espressif 32	External	ESP32	240MHz	4MB	320KB
Wio Lite RISC-V	GigaDevice GD32V	External	GD32VF103CBT6	108MHz	128KB	32KB
Wraith V1 ESC	ST STM32	External	STM32F051K6	48MHz	32KB	7.75KB
XMC1100 Boot Kit	Infineon XMC	On-board	XMC1100	32MHz	64KB	16KB
XMC1100 H-Bridge 2Go	Infineon XMC	On-board	XMC1100	32MHz	64KB	16KB
XMC1100 XMC2Go	Infineon XMC	On-board	XMC1100	32MHz	64KB	16KB
XMC1300 Boot Kit	Infineon XMC	On-board	XMC1300	32MHz	64KB	16KB
XMC1300 Sense2GoL	Infineon XMC	On-board	XMC1300	32MHz	32KB	16KB
XMC1400 Boot Kit	Infineon XMC	On-board	XMC1400	48MHz	1.95MB	16KB
XMC4200 Distance2Go	Infineon XMC	On-board	XMC4200	80MHz	256KB	40KB
XMC4700 Relax Kit	Infineon XMC	On-board	XMC4700	144MHz	2.00MB	1.95MB
XinaBox CW02	Espressif 32	External	ESP32	240MHz	4MB	320KB
hackaBLE	Nordic nRF52	External	NRF52832	64MHz	512KB	64KB
ng-beacon	Nordic nRF51	External	NRF51822	16MHz	256KB	32KB
oddWires IoT-Bus Io	Espressif 32	External	ESP32	240MHz	4MB	320KB
oddWires IoT-Bus Proteus	Espressif 32	External	ESP32	240MHz	4MB	320KB
sakura.io Evaluation Board	ST STM32	On-board	STM32F411RET6	100MHz	1MB	128KB
u-blox C027	NXP LPC	On-board	LPC1768	96MHz	512KB	64KB
u-blox C030-N211 IoT Starter Kit	ST STM32	External	STM32F437VG	180MHz	1MB	256KB
u-blox C030-R410M IoT	ST STM32	On-board	STM32F437VG	180MHz	1MB	256KB
u-blox C030-U201 IoT Starter Kit	ST STM32	External	STM32F437VG	180MHz	1MB	256KB
u-blox EVK-NINA-B1	Nordic nRF52	On-board	NRF52832	64MHz	512KB	64KB
u-blox EVK-ODIN-W2	ST STM32	External	STM32F439ZIY6	168MHz	2MB	256KB
u-blox ODIN-W2	ST STM32	External	STM32F439ZIY6	168MHz	2MB	256KB
y5 LPC11U35 mbug	NXP LPC	External	LPC11U35	48MHz	64KB	10KB
y5 nRF51822 mbug	Nordic nRF51	On-board	NRF51822	16MHz	256KB	16KB
